Product Description
Description

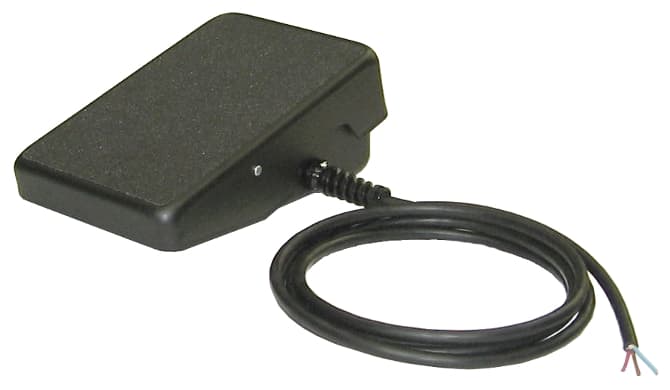

The L5000 foot control provide a variable resistance output that can be used in applications such as to vary the speed of motors with motor speed drives in voltage divider circuitry. Designed for professional / industrial applications, they provide long life, durability, and high performance.
Durable, heavy-duty design with smooth pedal action.
Oversized top traction area fits the whole foot.
High-life, 2-watt potentiometers with linear high-resolution output.
Easy to use whether standing up or sitting down.
Comfortable at-rest and operating foot positions.
Powder-painted steel case with 3M® traction pads.
Heavy-duty cable with flexible strain relief.
Enclosure rating IP-21.
US patent number 5,535,642.
Designed and manufactured under an ISO 9001 certified quality system.
Made in USA.
Specifications
- Action
Momentary
- Potentiometer
5,000 ohm, 2 watt, 125 VAC
- Switch
None
- Cord
8 ft cable with leads
- Weight
4.2 lbs (1.9 kg)
- Dimensions
8.8 x 5.5 x 4 in (22.4 x 14.0 x 10.2 cm)
- IEC Enclosure Rating
IP21
- Finish
Steel, powder paint; non-slip traction pads.
