Product Description
Description

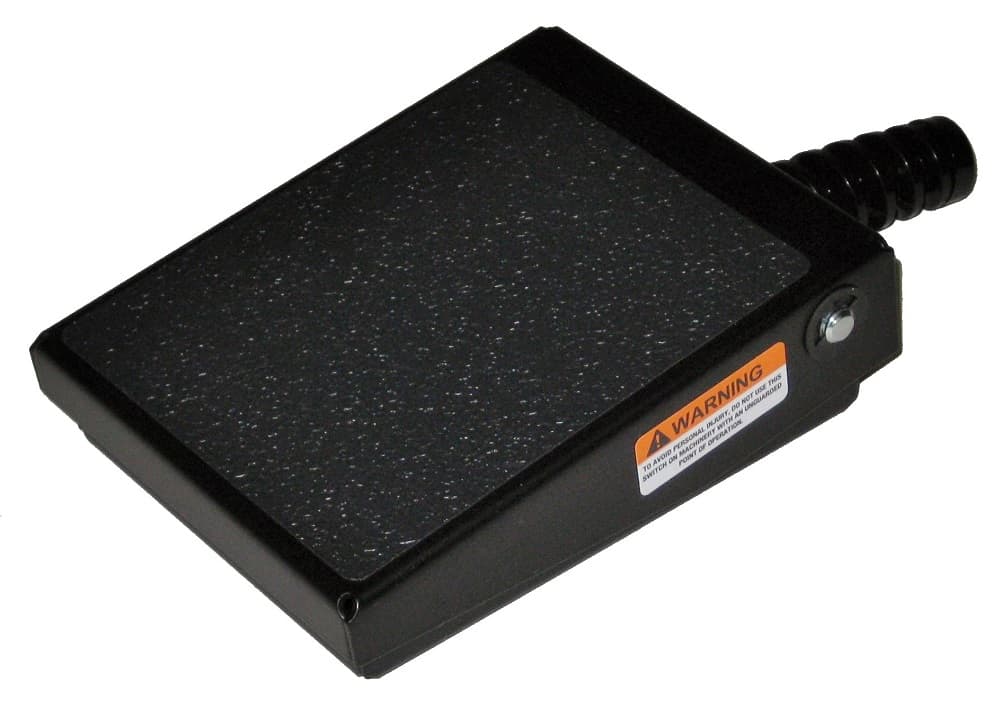

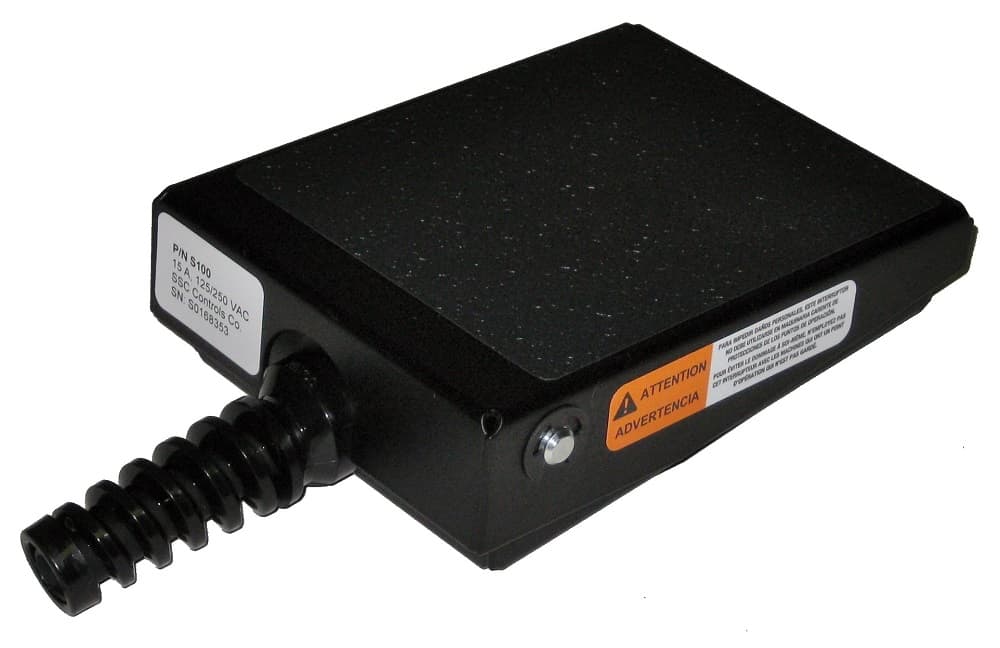

The S100-Series foot switches make it easy to turn electrical equipment on and off with the foot, freeing the hands to perform other operations or providing ergonomic improvement to a workstation. The simple momentary action occurs by pressing down on the pedal; an internal spring will return the switch to the “off” position upon release.
Momentary action - press and hold to turn on, release to turn off.
Durable steel case with powder-painted finish.
Cover pivots on a steel shaft, providing smooth, precise motion.
Low-profile shape makes it easy on the user.
Heel rests on the floor when using this switch.
Non-slip traction pads.
User must attach own cable to this model.
Quality system certified to ISO 9001 requirements.
Made in USA of imported and domestic components.
Specifications
- Action
Momentary
- Rating
15 A, 125/250 VAC; 0.1 A, 125 VDC
- Contacts
SPDT
- Cord
None; user must attach cable
- Terminals
Quick-connect tabs (.187 x .020) for terminals or soldering
- Assembly
Pliers may be used to secure the cable to the strain relief (or use Heyco strain relief assembly tool #R29 / 0022).
- Cross Reference
T-91-S
- Weight
0.9 lbs (0.4 kg)
- Dimensions
10 x 7 x 2 in (25.4 x 17.8 x 5.1 cm)
- Enclosure Rating
CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments.
- Finish
Powder paint, black
