Product Description

SSC Controls

S100-0103

Foot Switch

Light-duty foot switch

Description

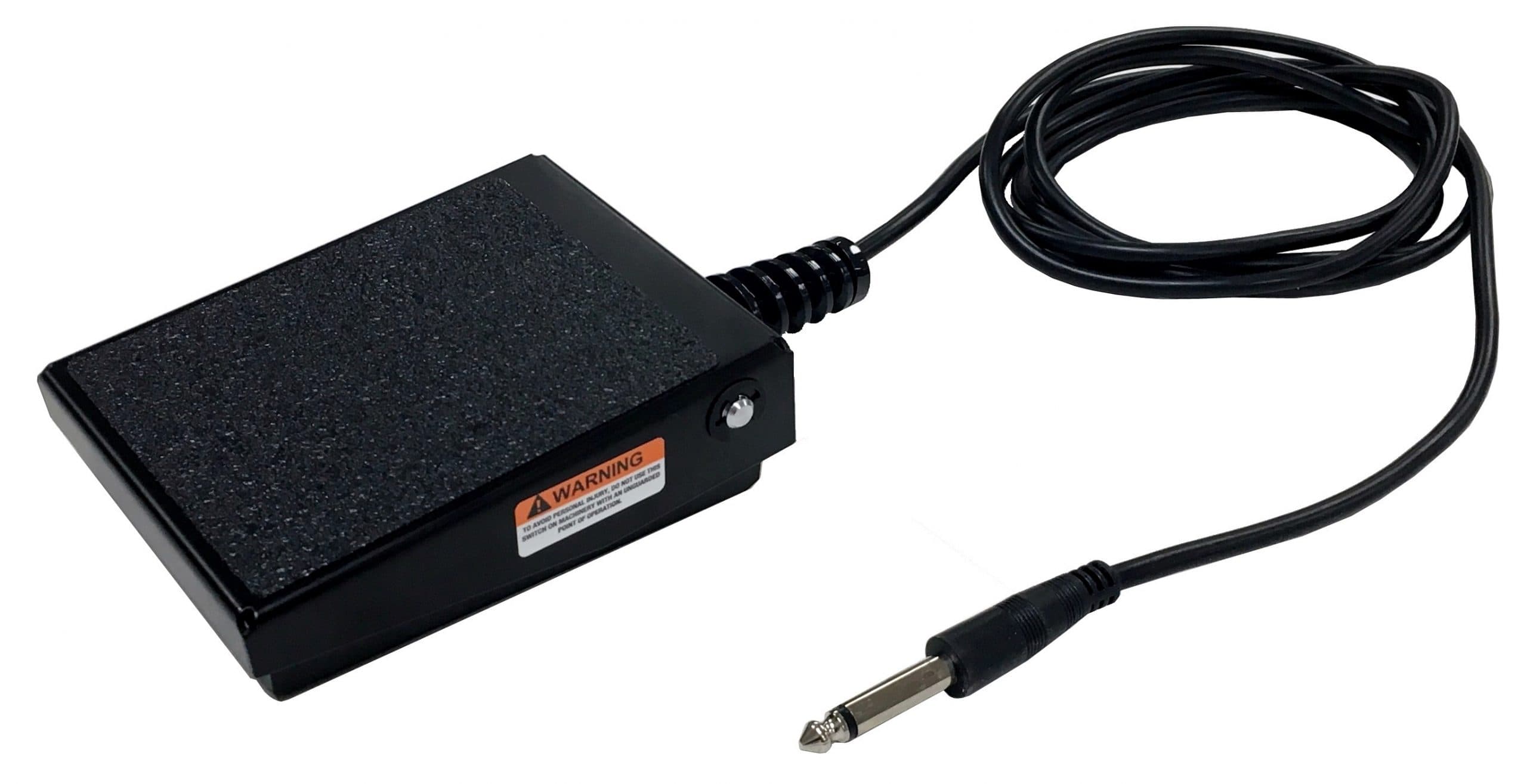

The S100-Series foot switches make it easy to turn electrical equipment on and off with the foot, freeing the hands to perform other operations or providing ergonomic improvement to a workstation. The simple momentary action occurs by pressing down on the pedal; an internal spring will return the switch to the “off” position upon release. Ideal for light-duty industrial, medical, dental, and office equipment.

Features
  • Momentary action - press and hold to turn on, release to turn off.

  • Durable steel case with powder-painted finish.

  • Cover pivots on a steel shaft, providing smooth, precise motion.

  • Wide, low-profile shape makes it easy on the user.

  • Heel rests on the floor when using this switch.

  • Non-slip traction pads.

  • Quality system certified to ISO 9001 requirements.

  • Made in USA of imported and domestic components.

Specifications

Action

Momentary

Rating

Suitable for low-voltage applications only

Contacts

SPDT wired NO

Cord

7.5 ft. cable with 1/4" phone plug

Weight

1.4 lbs (0.6 kg)

Dimensions

4.6 x 3.5 x 1.4 in (11.7 x 8.9 x 3.6 cm)

Certification

This product is not certified to UL or CSA at this time.

Finish

Powder paint, black
