Product Description
Description

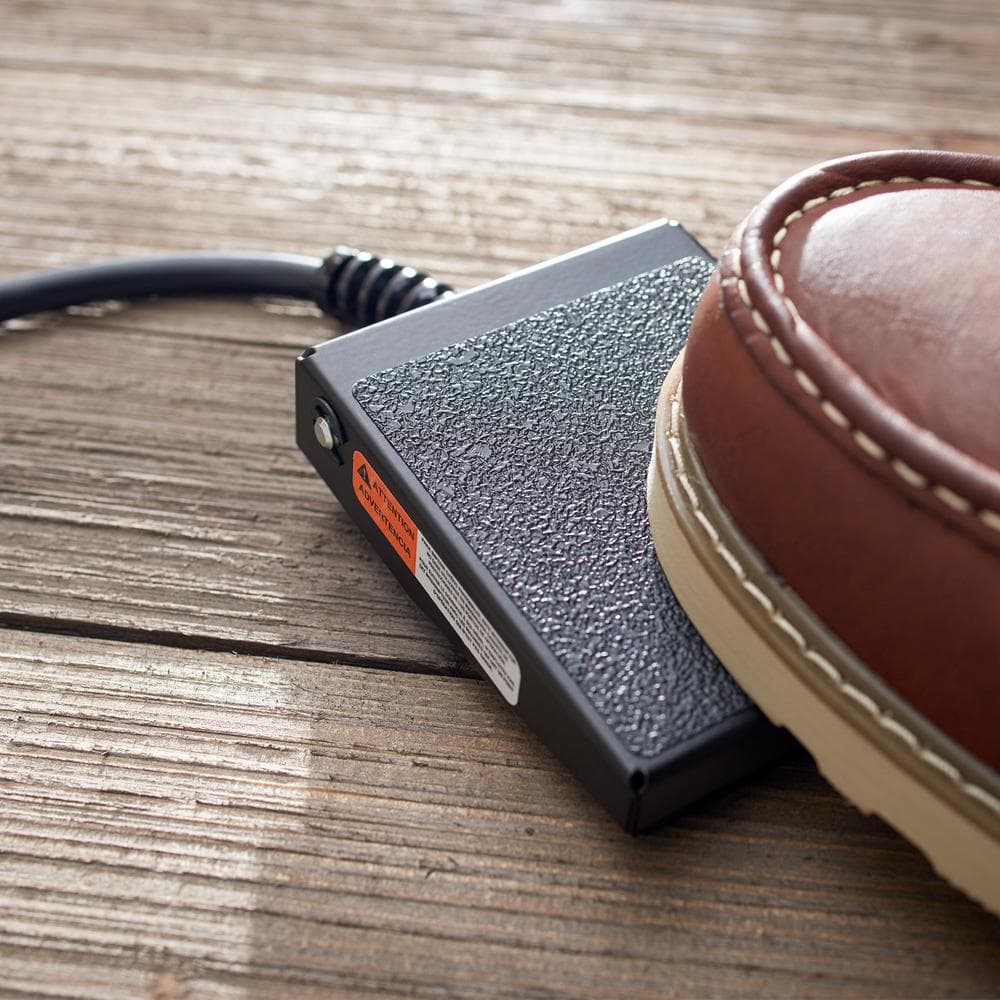

The S100-Series foot switches make it easy to turn electrical equipment on and off with the foot, freeing the hands to perform other operations or providing ergonomic improvement to a workstation. The simple momentary action occurs by pressing down on the pedal; an internal spring will return the switch to the “off” position upon release. Ideal for light-duty industrial, medical, dental, and office equipment.
Momentary action - press and hold to turn on, release to turn off.
Durable steel case with powder-painted finish.
Cover pivots on a steel shaft, providing smooth, precise motion.
Wide, low-profile shape makes it easy on the user.
Heel rests on the floor when using this switch.
Heavy-duty cable with flexible strain relief.
Non-slip traction pads.
CSA Certified and UL Listed to US and Canadian standards
Quality system certified to ISO 9001 requirements.
Made in USA of imported and domestic components.
Specifications
- Action
Momentary
- Rating
15 A, 125 VAC; 0.1 A, 125 VDC
- Contacts
SPDT wired NO
- Cord

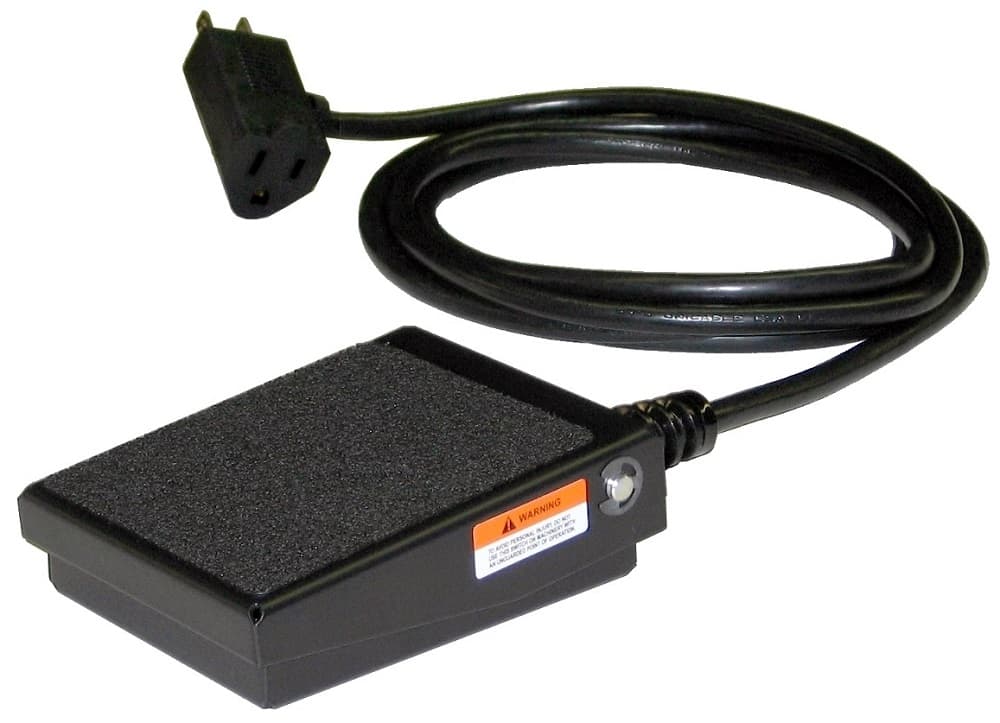

8 ft cable with 3-pronged plug
- Cross Reference
T-91-SC3A; Cabelas IK-540844 meat grinder foot pedal, LEM 724
- Weight
1.4 lbs (0.6 kg)
- Dimensions
4.6 x 3.5 x 1.4 in (11.7 x 8.9 x 3.6 cm)
- Enclosure Rating
UL/CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments.
- Certification
CSA Certified and UL Listed to US and Canadian standards
- Finish
Powder paint, black
