Product Description
Description

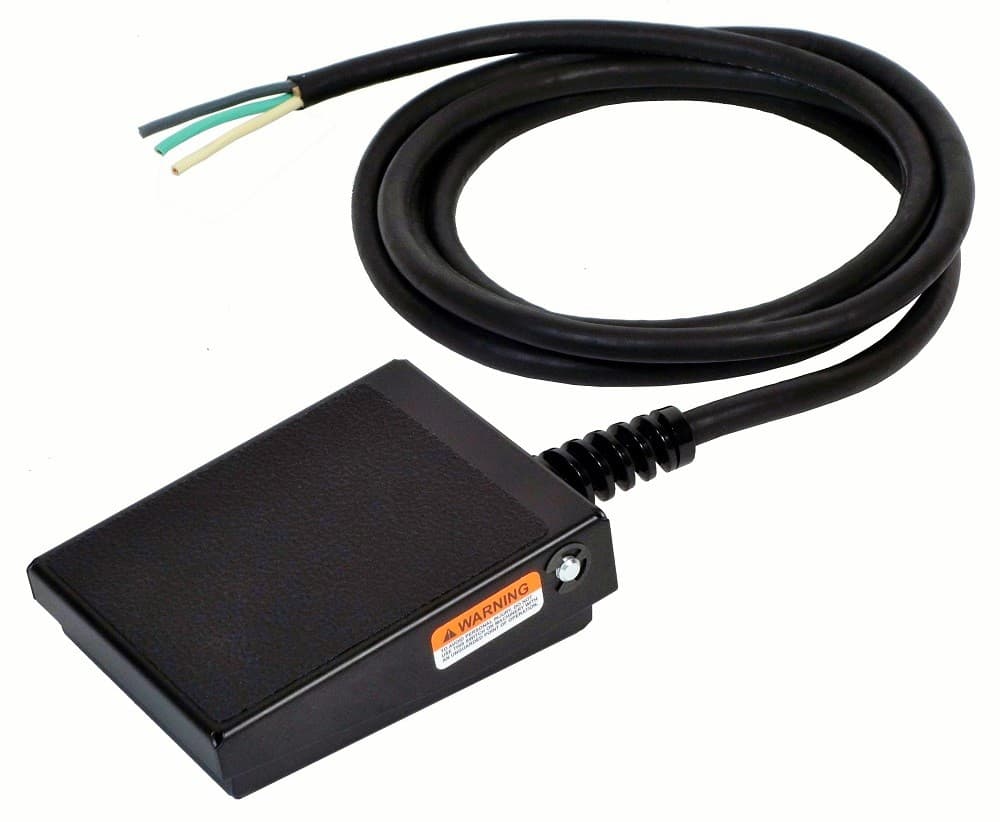

The S100-Series foot switches make it easy to turn electrical equipment on and off with the foot, freeing the hands to perform other operations or providing ergonomic improvement to a workstation. The simple momentary action occurs by pressing down on the pedal; an internal spring will return the switch to the “off” position upon release. Ideal for light-duty industrial, medical, dental, and office equipment.
Momentary action - press and hold to turn on, release to turn off.
Durable steel case with powder-painted finish.
Cover pivots on a steel shaft, providing smooth, precise motion.
Wide, low-profile shape makes it easy on the user.
Heel rests on the floor when using this switch.
Heavy-duty cable with flexible strain relief.
Non-slip traction pads.
CSA Certified and UL Listed to US and Canadian standards
Quality system certified to ISO 9001 requirements.
Made in USA of imported and domestic components.
Specifications
- Action
Momentary
- Rating
15 A, 125/250 VAC; 0.1 A, 125 VDC
- Contacts
SPDT wired NO
- Cord
8 ft cable with leads
- Weight
1.4 lbs (0.6 kg)
- Dimensions
4.6 x 3.5 x 1.4 in (11.7 x 8.9 x 3.6 cm)
- Enclosure Rating
IP-21; NEMA Type 1
- Certification
CSA Certified and UL Listed to US and Canadian standards
- Finish
Powder paint, black
