Product Description

Telecrane

F21-E2 Series

Wireless Radio Control

Pendant control

Description

The compact, ergonomically designed transmitters for easy carrying. The single speed button works as double speed button through PC program. e-Card supported. Easy swapping the system from one to another in case of transmitter damage. Remove the e-card and plug into new system for resuming to work immediately.

  • Transmitter pushbutton: 1 EMS button / 1 Rotary Key Switch 8 single step button (UP/DOWN buttons are programmable as double speed through software)
  • Transmitter Two 1.5 volts (AA Size) alkaline/ rechargeable batteries
  • Over 4.3 billions unique ID code available (never repeated)
  • Operating temperature range -40°C to +85°C
  • CRC & Hamming Technology: enhanced encoding/decoding.
  • Internal antenna for both transmitter & receiver
  • PLL Circuit: multi-channel selection, interference free.
  • Ergonomic transmitter: compact & handy.
  • Programmable: Computer software programmable. A single step pushbutton works as double step pushbutton.
Models

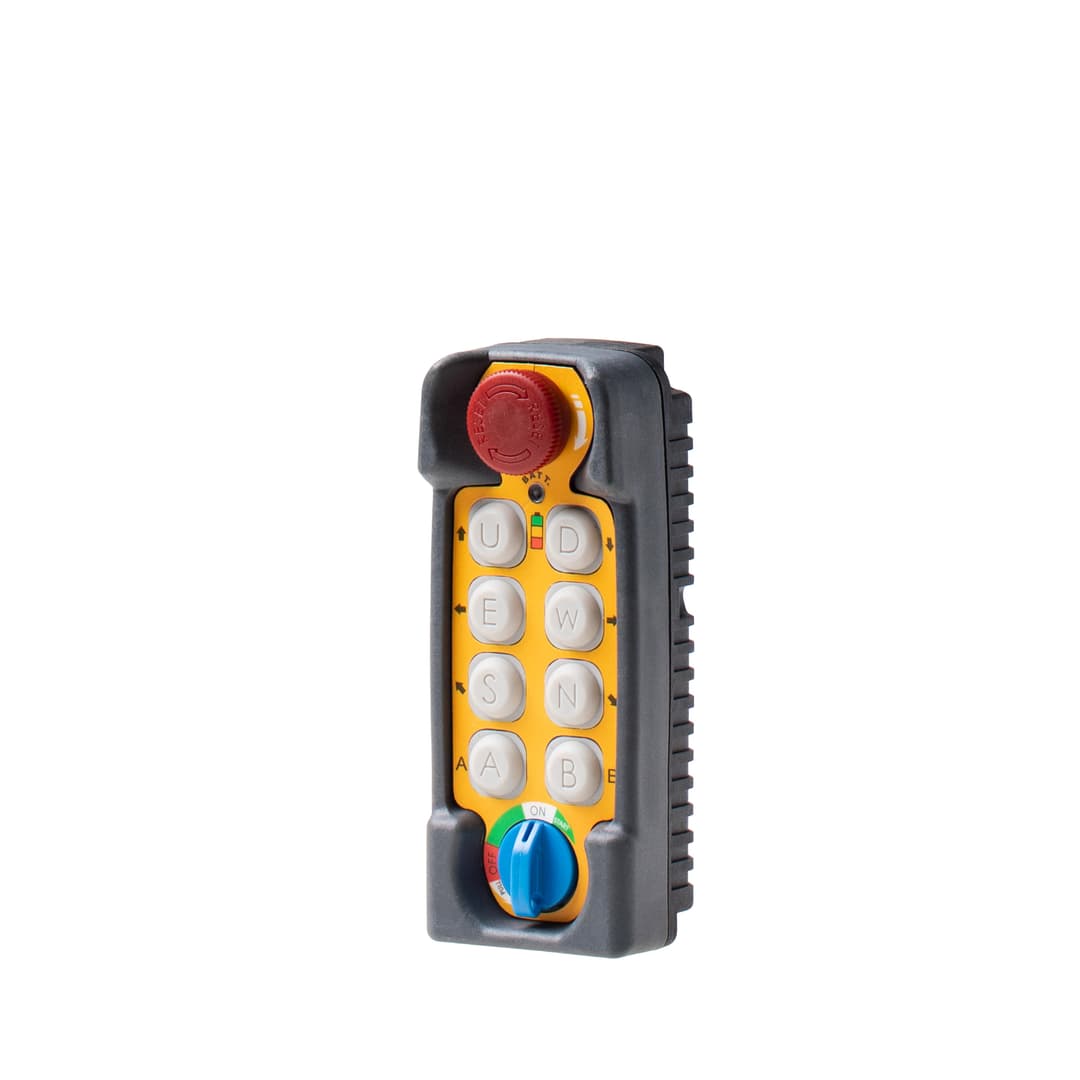

  • F21-E2: 8 pushbuttons single speed

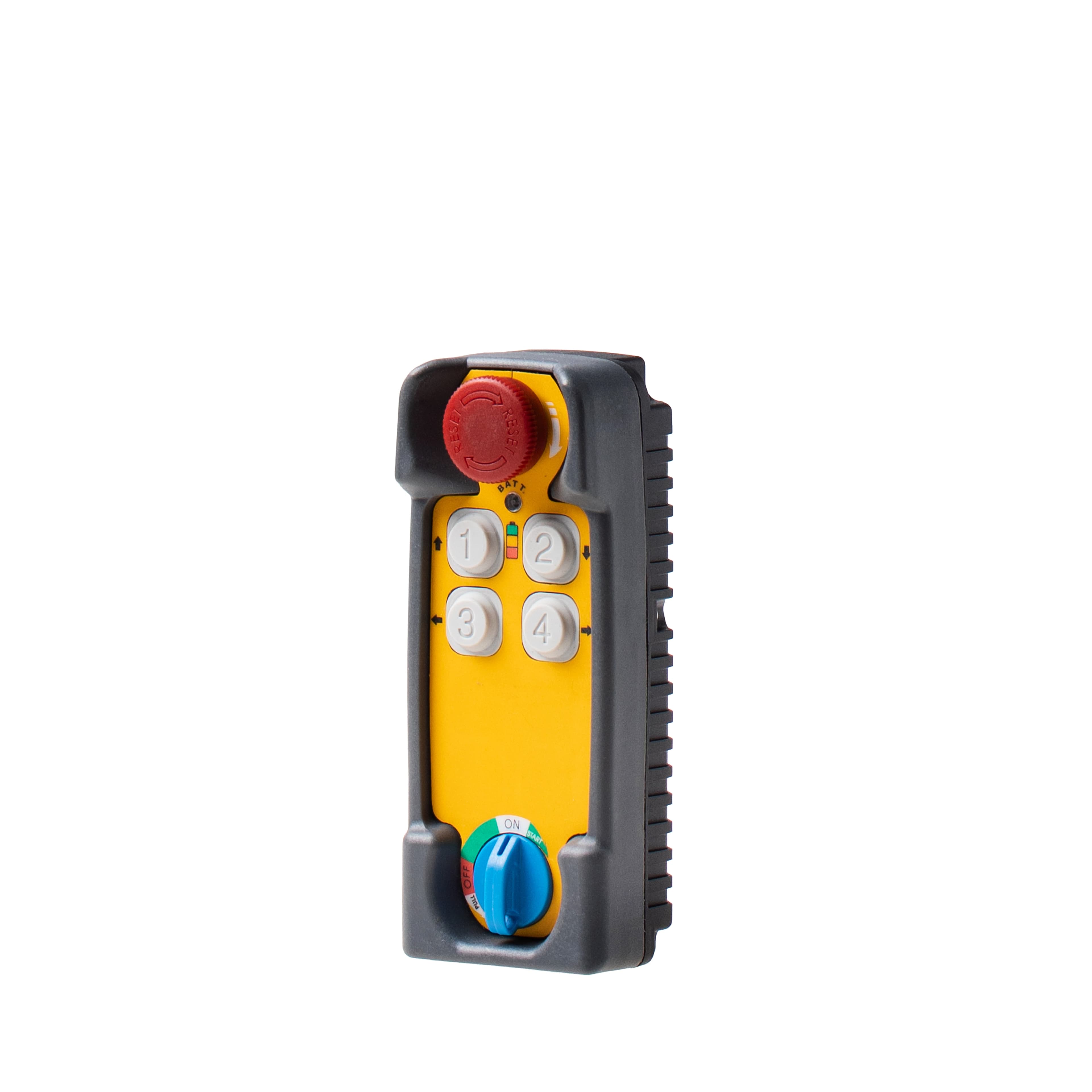

  • F21-E2-4: 4 pushbuttons single speed

Specifications

Function Setting Software

To meet variety application requirements, F21-E2 software provides multi-function setting such as pushbutton in Normal(Momentary), Toggle, Magnetic, ON/OFF, and Interlock/Non-interlock modes.

e-Card design

USB interface

Plug & Play, just like SIM card

e-Card duplicate via transmitter

Transmitter

Dimensions

132 x 55 x 40 mm

Weight

175 g (w/o batteries)

Power

2 AA batteries, alkaline/rechargeable acceptable

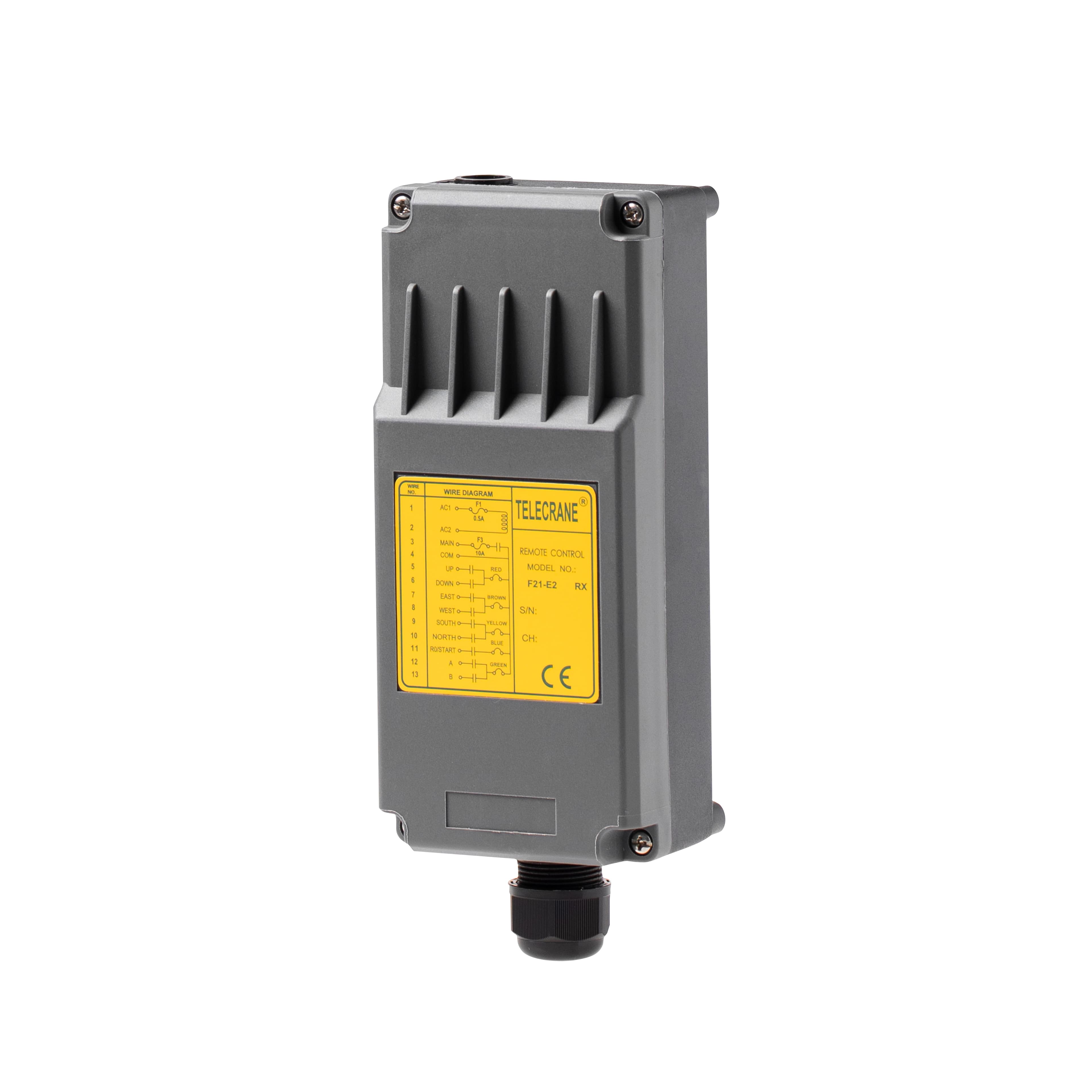

Receiver

Dimensions

190 x 85 x 62 mm

Weight

950 g (w/ wire cable)

Power Supply

24/48, 48/110, 110/220, 220/380 VAC / 12~24 VDC
