Product Description

Telecrane

F24 60+ Joystick

Wireless Radio Control

Pendant control

Description

A perfect partner for tower crane/concrete pump and processing machinery.

Models
  • F24-60+ Joystick: Dual 5-step joysticks, 6 pushbuttons single speed, 4 selector switches

Features

Features

Patented 5 Steps Dual Axis Joystick

Long life silicon rubber structure (Patented) with a sealed construction Angle Detector (Dust-free). 2 mm Stainless Steel gears give excellent clear mechanical feeling during operating. A patented swing mechanism extends Angle Detector life cycle in severe operation condition. An optical sensor (neutral position) makes operation safer.

Security Enhanced & Anti-Spy

Transmitter with its powerful processor, it generates SRC (Security Random Code) radio signal with random coding to prevent spy copying. By integrating hamming coding and CRC (Cyclic Redundancy Check) technology, it provides accuracy in radio data transmission. A unique Non-Repeated security code (ID code), it prevents the error output and improves the operating safety

Take and Release

This feature allows two or more operators the ability to control one crane system from opposite ends of a long runway or cross travel

Relay Configuration

Control up to 16 relays for single axis. It gives great flexibility for complex control

Specifications

Features

5-step Joystick x 2

Single speed pushbutton x 6

Selector Switch x 4 (2 positions x 2 / 3 positions x 2)

EMS Button x 1

Rotary Key x 1

Durable nylon-fiber housing for extra shock resistance

Fully programmable relay configuration with maximum 16 relays output per command

Operating range: Up to 100 meters

Pre-wiring standard cable making installation quick and easy

Economic efficiency, ease of operation

3 stages LED battery power indicator

Feature acceleration delay time control (smooth moving for multiple speeds cranes)

Safety features: 4.3 billion unique ID code / Hamming code > 4 / enhanced watch-dog circuit

Operating temperature range -35°C to +80°C

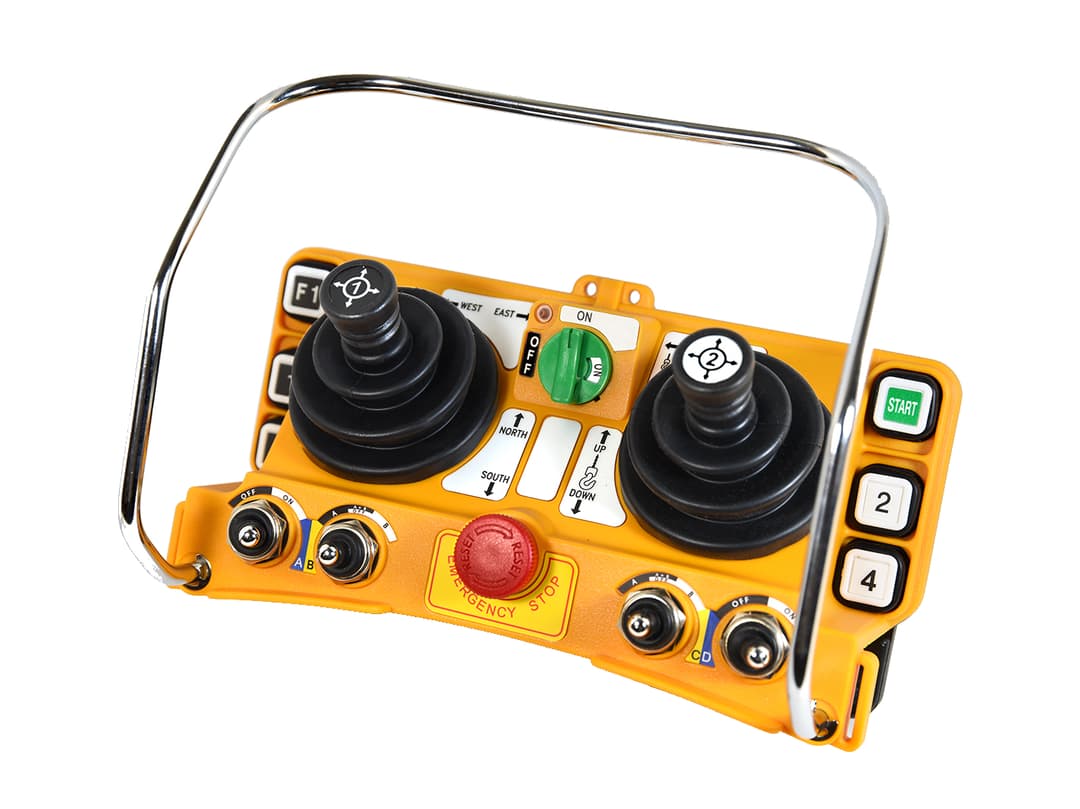

Transmitter

Dimension

220 x 110 x 90 mm

Weight

860 g (w/o batteries)

Power

4 AA batteries, alkaline/rechargeable acceptable

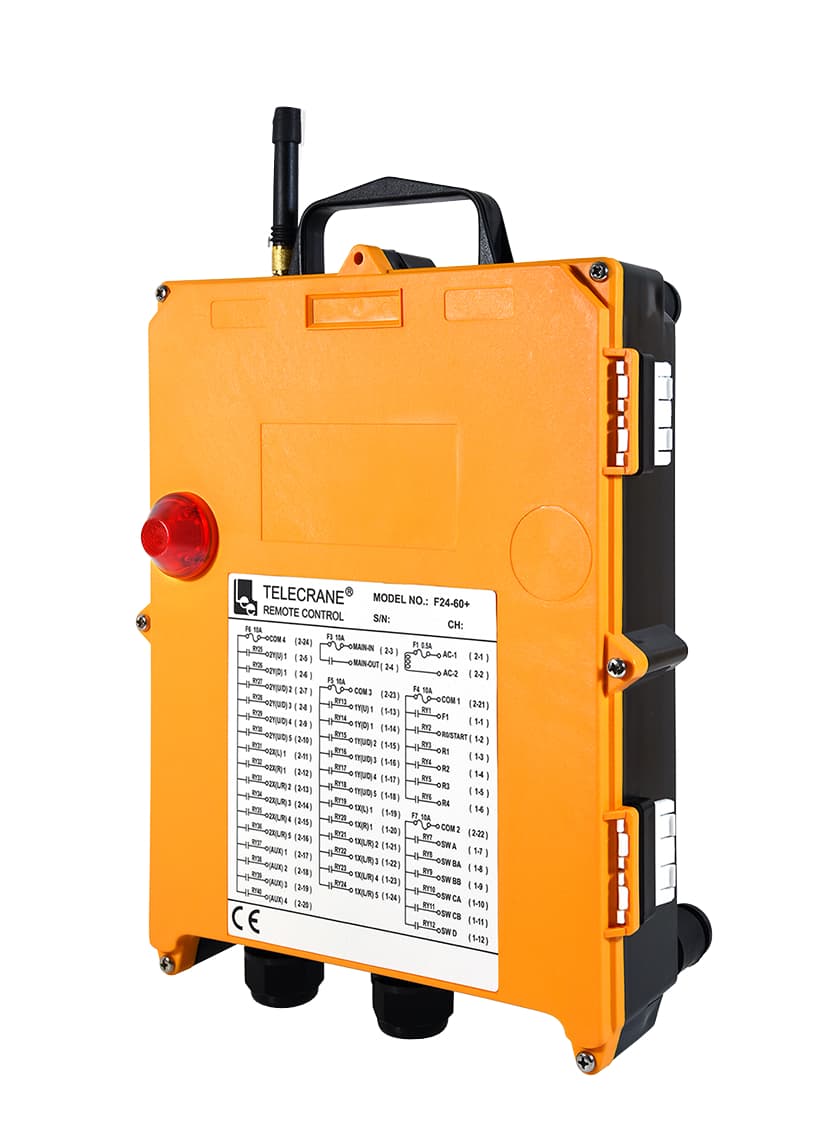

Receiver

Dimensions

290 x 230 x 70 mm

Weight

2200 g (w/o wire cable)

Power Supply

24/48/110/220/380 VAC / 12~24 VDC
