Product Description
Description
- Emergency of STOP control comply with EN ISO 13849-1 (PL=d)
- Durable casing with extra shock resistance
- Programmable function setting, optimum flexibility for all kind industrial applications
- Remote Pairing technology, allowing instant maintenance on site
- Pre-wiring standard cable for quick and easy installation
- Built-in receiver Alarm/Horn, save the cost of installing extra warning devices
Models

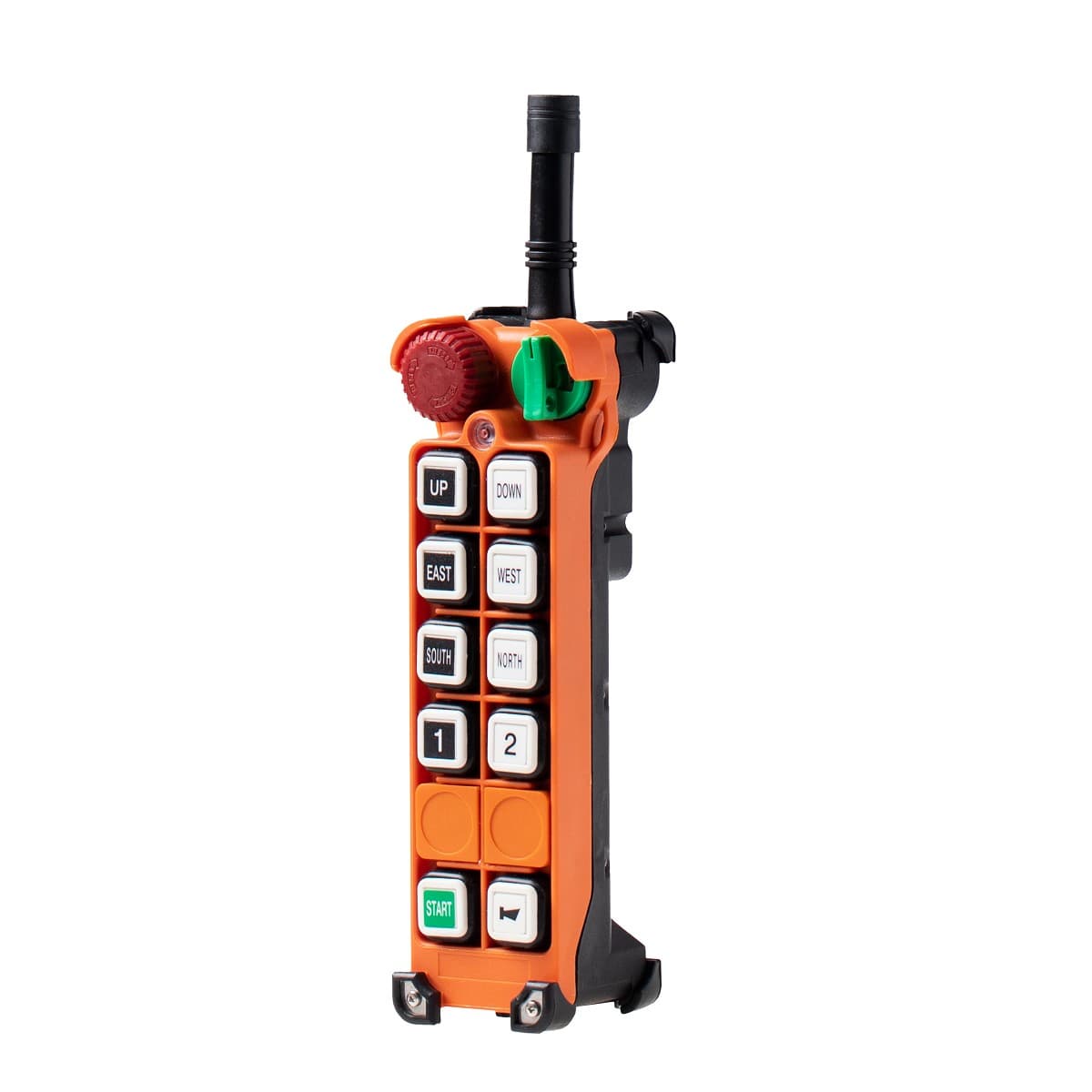

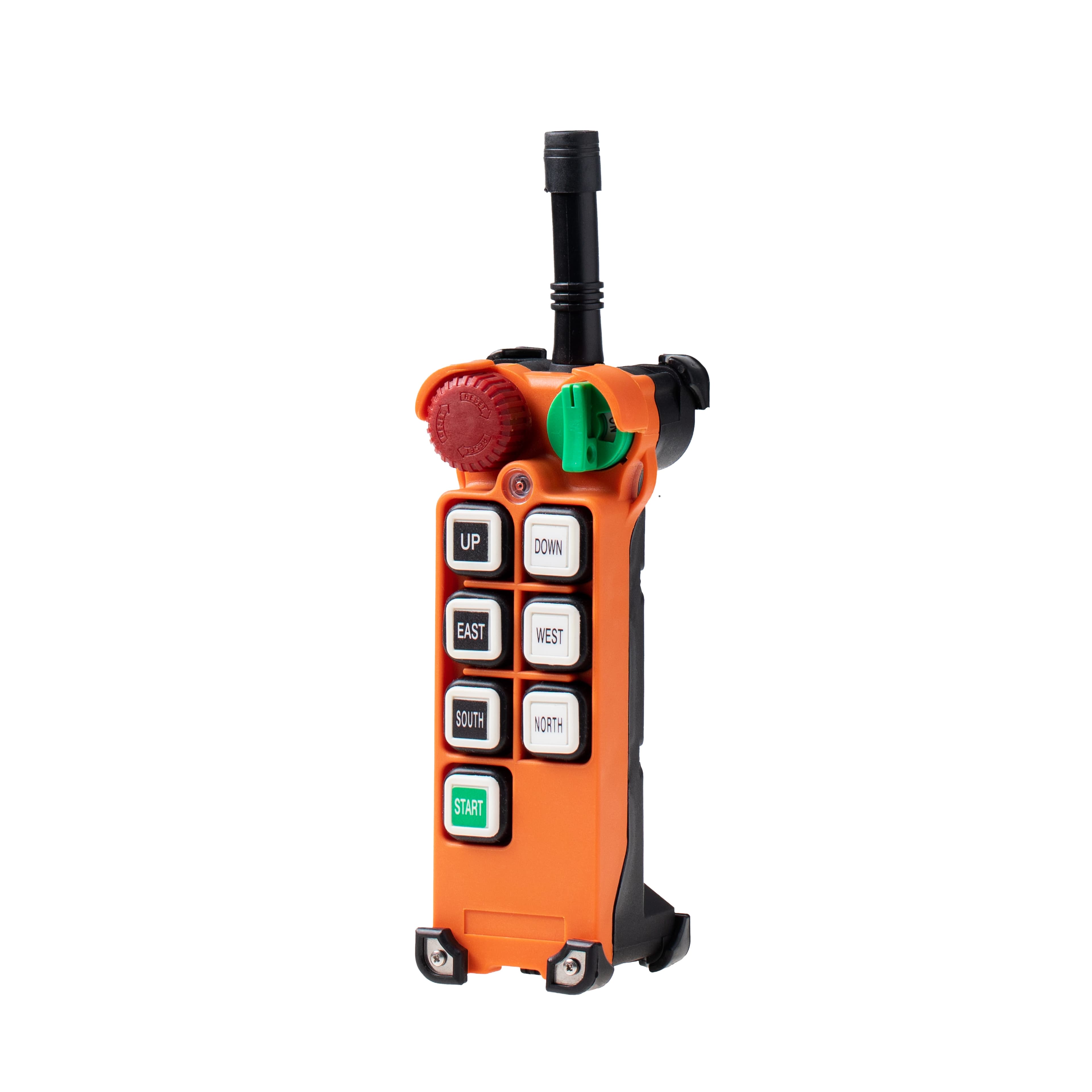

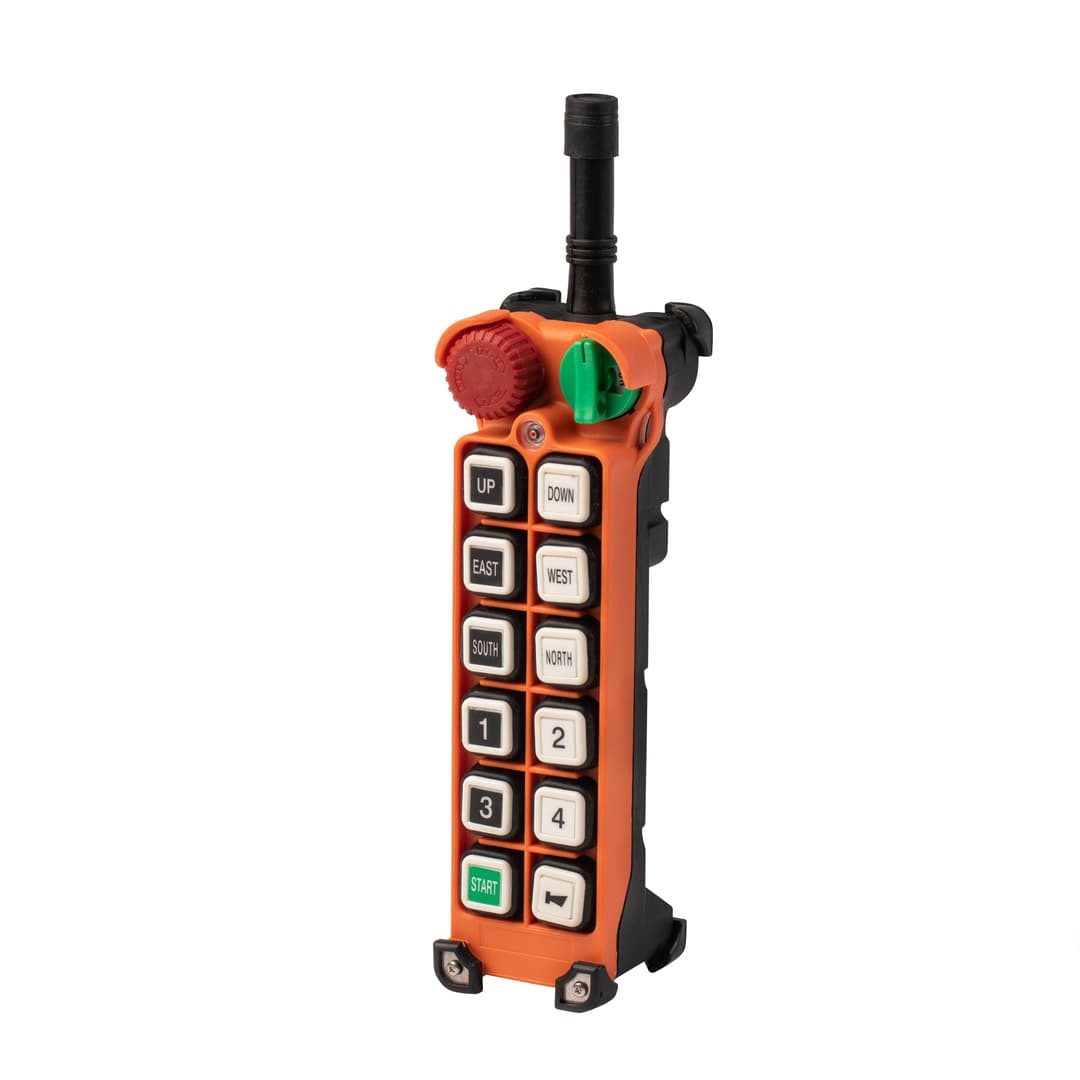

F25-6S: 6 pushbuttons single speed
F25-6D: 6 pushbuttons double speeds
F25-8S: 8 pushbuttons single speed
F25-8D: 8 pushbuttons double speeds
F25-10S: 10 pushbuttons single speed
F25-10D: 10 pushbuttons double speeds
Specifications
- Transmitter
Dimension
186 x 61 x 51 mm
Weight
250 g (w/o batteries)
Power
4 AA batteries, alkaline/rechargeable acceptable

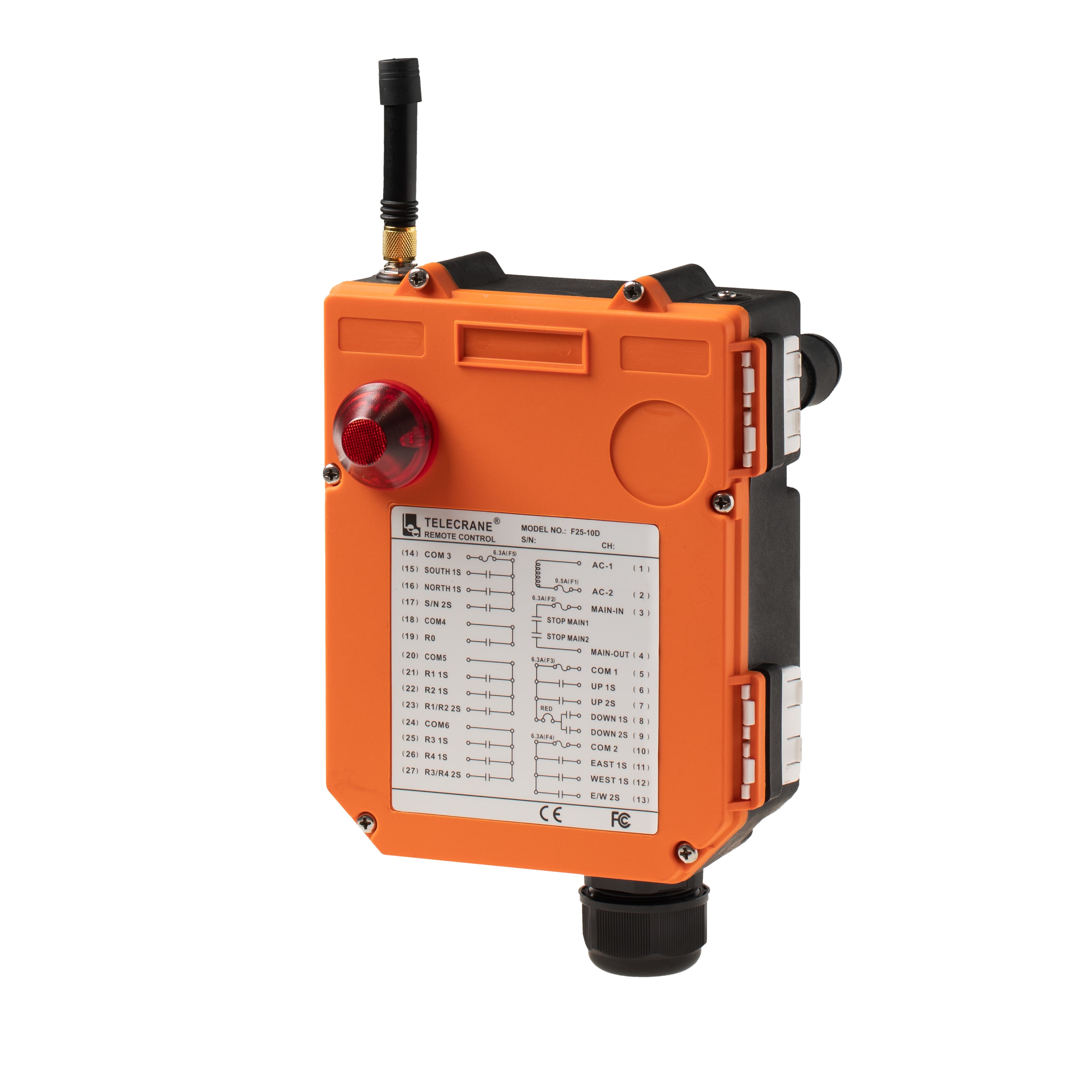

- Receiver
Dimensions
200 x 162 x 107 mm
Weight
1550 g (w/o wire cable)
Power Supply
24/48/110/220/380 VAC / 12~24 VDC
