Product Description
Description
Advanced programmable logic controller from the back- big & high resolution color 10.4″ touchscreen. Snap-in I/Os for an All-in-one; expands up to 1000 I/Os.
Auto-tune PID, up to 24 independent loops
Recipe programs and data logging via data tables
MicroSD card - log, backup, clone & more
Function Blocks
High quality touchscreen
Multi-language display
Built-in Alarm Screens
Ports
- Mini USB for programming
- CANbus
- Isolated RS485/RS232
- 1 port may be added for an additional Serial/Ethernet
Protocols
- MODBUS TCP
- SNMP*
- CANopen, CANlayer2, UniCAN
- BACnet, KNX and M-Bus via gateway
- FB Protocol: for any 3rd party protocol
General
- Web server
- E-mail & SMS
- Remote access utilities
- 3G Modem support
Expand up to 1000 I/Os
I/O options include digital, analog, high-speed, temperature & weight measurement
Specifications
- Snap-in I/O Modules

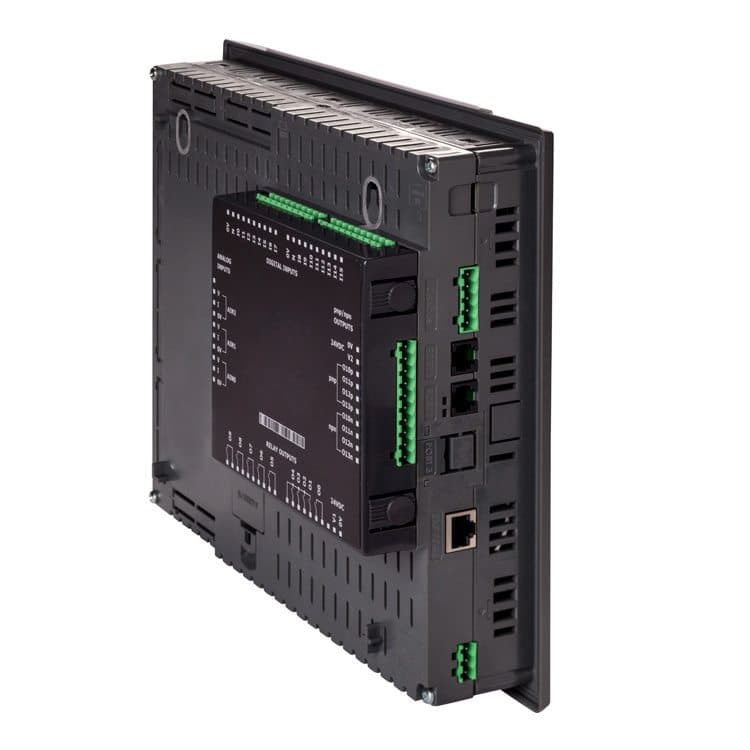

Plug these modules directly into the back of the Vision unit to create a self-contained PLC with up to 62 I/Os
Inputs may include Digital, Analog, and Temperature measurement
Outputs may include Transistor, Relay, or Analog (sold separately)
- I/O Expansion
Local or Remote I/Os may be added via expansion port or via CANbus
Expand up to 1000 I/Os
- Application Memory
Application Logic: 2MB
Images: 40MB
Fonts: 1MB
- Scan Time
9µsec per 1K of typical application
- Memory Operands
8192 coils
4096 registers
512 long integers (32-bit)
256 double words (32-bit unsigned)
64 floats
384 timers (32-bit)
32 counters
Additional non-retainable operands
1024 X-bits
512 X-integers
256 X-long integers
64 X-double words
- Data Tables
120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data
- SD Card (Micro)
Store data logs, Alarm History, Data Tables, Trend data, export to Excel
Back up Ladder, HMI & OS, clone PLCs
- USB
1 USB programming port (Mini-B)
- Enhanced Features
Trends: graph any value and display on HMI
Built-in Alarm management system
String Library: instantly switch HMI language
- Type
TFT LCD
- Display Backlight Illumination
White LED
- Colors
65,536 colors, 16 bit resolution
Brightness: Adjustable via touchscreen or software
- Display Resolution & Size
800 x 600 pixels (SVGA), 10.4"
- Touchscreen
Resistive, Analog
- Keys
9 programmable function keys
- Power Supply
12/24VDC
- Battery
7 years typical at 25°C
Battery back-up for all memory sections and RTC
- Clock
Real-time clock functions (date and time)
- Environment
IP65
NEMA4X (when panel mounted)
- Standard
CE, UL
Many of our products are also UL Class 1 Div 2 and GOST certified
