Product Description

Unitronics

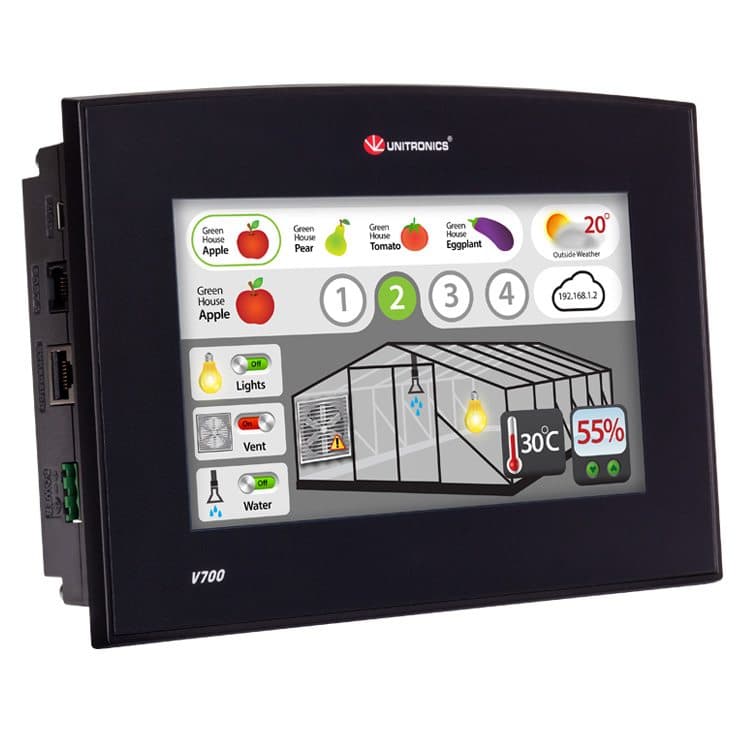

Vision700

Programmable Logic Controller

PLC with built-in quality HMI.

Description

Advanced programmable logic controller from the back—big & high resolution color 7″ touchscreen from the front. Snap-in I/Os for an All-in-one; expands up to 1000 I/Os.

PLC

  • Auto-tune PID, up to 24 independent loops

  • Recipe programs and data logging via data tables

  • MicroSD card - log, backup, clone & more

  • Function Blocks

HMI

  • High quality touchscreen

  • Multi-language display

  • Built-in Alarm Screens

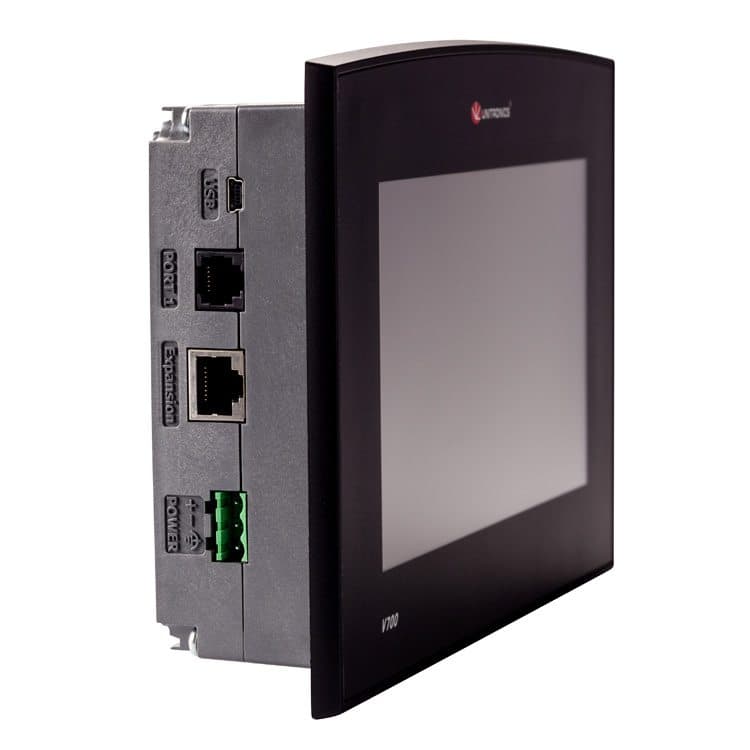

Communication

Ports

  • Mini USB for programming
  • CANbus
  • Isolated RS485/RS232
  • 1 port may be added for an additional Serial/Ethernet

Protocols

  • MODBUS TCP
  • SNMP*
  • CANopen, CANlayer2, UniCAN
  • BACnet, KNX and M-Bus via gateway
  • FB Protocol: for any 3rd party protocol

General

  • Web server
  • E-mail & SMS
  • Remote access utilities
  • 3G Modem support
    I/O

    • Expand up to 1000 I/Os

    • I/O options include digital, analog, high-speed, temperature & weight measurement

    Specifications

    Specifications

    Snap-in I/O Modules

    Plug these modules directly into the back of the Vision unit to create a self-contained PLC with up to 62 I/Os

    Inputs may include Digital, Analog, and Temperature measurement

    Outputs may include Transistor, Relay, or Analog (sold separately)

    I/O Expansion

    Local or Remote I/Os may be added via expansion port or via CANbus

    Expand up to 1000 I/Os

    Application Memory

    Application Logic: 2MB

    Images: 40MB

    Fonts: 1MB

    Scan Time

    9µsec per 1K of typical application

    Memory Operands

    8192 coils

    4096 registers

    512 long integers (32-bit)

    256 double words (32-bit unsigned)

    64 floats

    384 timers (32-bit)

    32 counters

    Additional non-retainable operands

    1024 X-bits

    512 X-integers

    256 X-long integers

    64 X-double words

    Data Tables

    120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data

    SD Card (Micro)

    Store data logs, Alarm History, Data Tables, Trend data, export to Excel

    Back up Ladder, HMI & OS, clone PLCs

    Enhanced Features

    Trends: graph any value and display on HMI

    Built-in Alarm management system

    String Library: instantly switch HMI language

    Type

    TFT LCD

    Display Backlight Illumination

    White LED

    Colors

    65,536 colors, 16 bit resolution

    Brightness: Adjustable via touchscreen or software

    Display Resolution & Size

    800 x 600 pixels (SVGA), 10.4"

    Touchscreen

    Resistive, Analog

    Keys

    Virtual keyboard

    Power Supply

    12/24VDC

    Battery

    7 years typical at 25°C

    Battery back-up for all memory sections and RTC

    Clock

    Real-time clock functions (date and time)

    Environment

    IP65

    NEMA4X (when panel mounted)

    Standard

    CE, UL

    Many of our products are also UL Class 1 Div 2 and GOST certified
