Wachendorff

LMS58

Length Measurement System

Length measuring system

Description

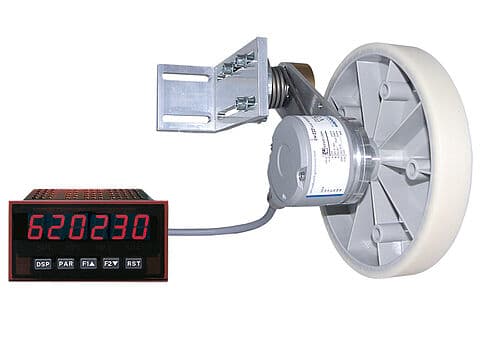

The LMS58 robust legnth measuring system for length or speed with shaft encoder, pre-selection counter / tachometer spring-loaded arm, and measuring wheel. The system is not pre-assembled and comes as individual components.

  • For speed and length measurement
  • Relay output card
  • Spring-loaded arm for any required installation and running direction,
  • adjustable pre- tensioning force: 20, 25 and 30 N for optimum
  • contact pressure and compensation for unevenness
  • Incremental encoder WDGI 58B with 2 m cable
  • shaft Ø 10 mm
  • Measuring wheel suitable for various surfaces
  • Resolution 0,1 mm or 1 mm, other resolutions available

Specifications

For detailed specifications, refer to the LMS58 Data Sheet in Downloads or visit the manufacturer's website.
