Product Description

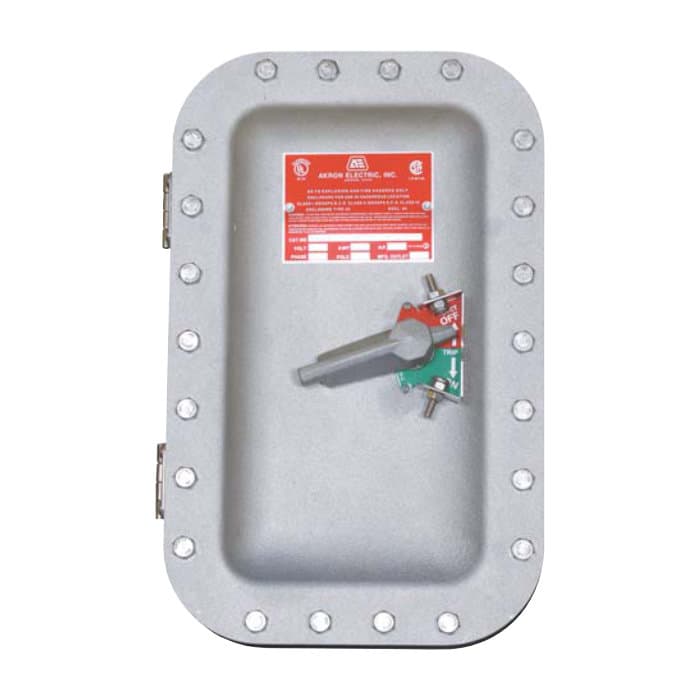

XCB, XND & XFD Series
Hazardous Location Circuit BreakerExplosion-proof circuit breaker
XCB, XND & XFD Series
Hazardous Location Circuit BreakerExplosion-proof circuit breaker
Description
- External Machined Flange Joint Design Integral Cast Mounting Feet
- Captive Quick Thread Cover Bolts ( -E3 ) (Optional)
- Stainless Steel Operating Shaft for Corrosion Resistance
- Operating Handle does not interfere with tripping of Breaker Handle
- Aluminum Mounting Pans are predrilled for Breaker specified
- Breakers available: ABB, Cutler-Hammer (Consult Factory for other brands)
- Enclosures available with or without breakers
- Line and load outlets standard
- Stainless Steel Shot or Sandblasted natural finish
- Atex certification (optional)
Prose
Available Sizes
The XCB, XND & XFD Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
ATEX certification is available upon request. Certain features are added to the AXJ Series if ATEX is required:
- Metric cover bolts
- External ground screw
- If NEMA 4 O-ring is required, IP 66 rating applies
Materials
- Enclosure
Copper-free Aluminum (less than 0.25% copper content)
- Cover Bolts
Stainless Steel Cover Bolts (-N5) (Standard)
- Hinges
Cast-Aluminum or S.S. Hinges with S.S. Hardware (Standard) NEMA
- O-Ring (Optional)
Buna-N
- Breather/Drain (BD) (Optional)
Universal Breather or Drain
For detailed specifications, refer to the Product Catalogue.
Standards
- Approvals
Classified by Underwriters Laboratories, Inc. as to Explosion and Fire
Hazard Only. Enclosure for use in: Class I, Groups B, C & D
Class II, Groups E, F & G
Type 4X (When specified)
- Compliances
CL. I, Div. 1 & 2 Groups B, C & D CL. II, Div. 1 & 2 Groups E, F & G CL. III
NEMA 3, 4X, 7 & 9
For detailed specifications, refer to the Product Catalogue.
