Product Description
F200-1501
Foot SwitchMedium-duty foot switch with a 15 Amp rating and cable with piggyback plug
F200-1501
Foot SwitchMedium-duty foot switch with a 15 Amp rating and cable with piggyback plug
Description

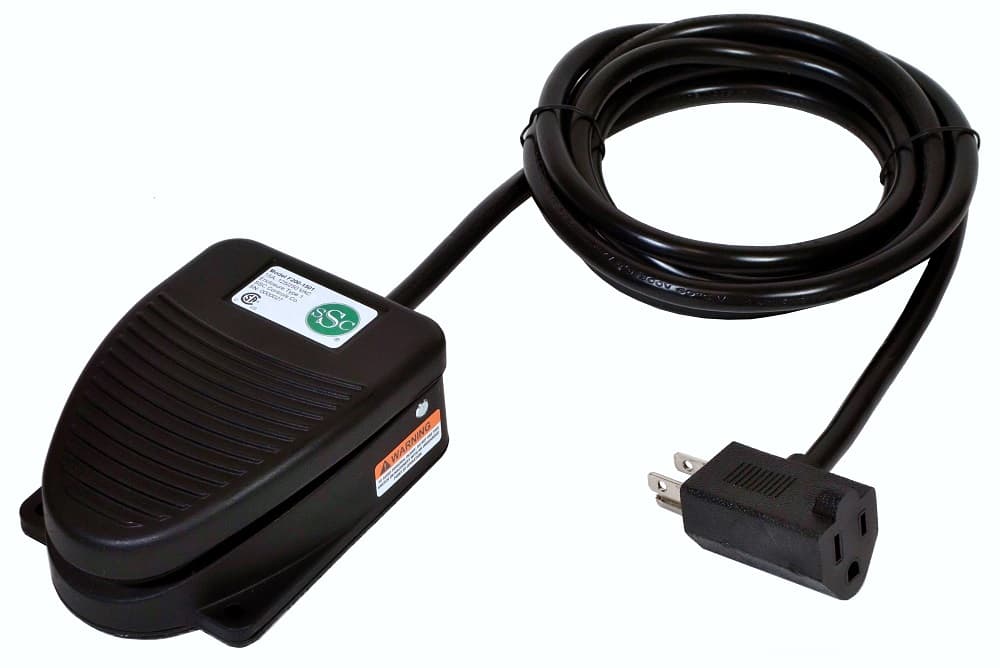

The F200-1501 is a medium-duty foot switch featuring a highly durable die-cast zinc alloy housing, powder-painted finish, and 3-pronged piggyback plug. The added weight and quality will make this a long-lasting foot switch in your home or shop. Ideal for power tools (max 1/2 HP), office equipment, musical operation, meat grinders, Dremel tools, and more.
Features a 15-amp, 125 VAC-rated switch with an 8-foot cable and a 3-pronged piggyback plug (NEMA 5-15 series): plug the pedal into your North American wall socket, and then plug your device into the back of that plug, and the foot switch will now be in line with the device.
This is a momentary foot switch, which means that it turns your product on when your foot is on the pedal, and turns it off when you release your foot from the pedal. Includes a traction pad and two exterior bolt-down holes.
Die-cast housing provides superior appearance and durability.
Durable zinc alloy will not rust or easily break.

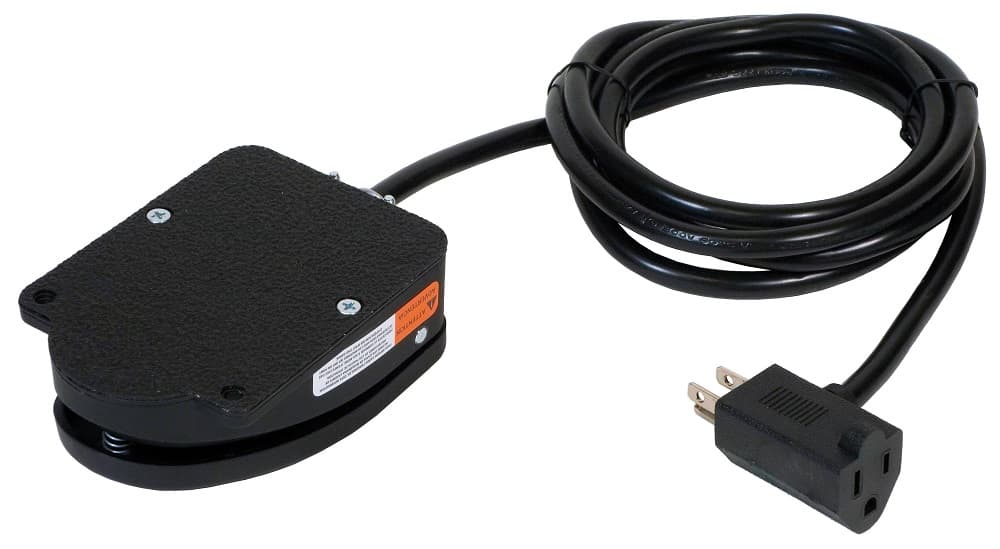

Powder-painted black finish with bottom traction pad.
Includes two exterior bolt-down holes.
Enclosure rating: CSA/NEMA Type 1; IEC 60529 IP20.
CSA Certified and UL Listed to US and Canadian standards
Designed and manufactured under an ISO 9001 certified quality system.
Made in USA.
Highlights
Optional Guard
The F-Series with Guards provide a tough powder-painted steel cover for any F-Series foot switch. The unit includes the foot switch enclosed in a tough 12-gauge steel guard. The guard provides a comfortable housing in which to locate the foot, as well as to protect the switch from debris.
Optional Protective Boot Cover
The vinyl boot cover can be attached onto any single F-Series foot switch with no tools required. The boot cover adds a layer of protection to keep out dirt, dust, light overhead dripping water, and other undesirable elements. Note: It does not make the foot switch waterproof or submergible, and it does not change the NEMA Enclosure Type 1 or IP 20 rating of the F-Series. It is made of Plastisol PVC material.
Dual Base Compatible
The DF-Series Dual Foot Switch allows the combination of two F-Series foot switches on a dual base, with a connection tube to route the wiring from one side to the other, and one cable exit point.
Specifications
- Action
Momentary
- No. Switches
1
- Rating
15 A, ½ HP, 125 VAC; 0.1 A, 125 VDC
- Circuit
SPDT wired NO
- Cable
8 ft cable with piggyback plug for wall outlet
- Weight
3 lbs (1.36 kg)
- Dimensions
4.8 x 3.5 x 1.7 in (12.2 x 8.9 x 4.3 cm)
- Enclosure Rating
UL/CSA/NEMA Type 1 and IEC 60529 IP20
For indoor use in dry environments.
- Certification
CSA Certified to US and Canadian standard
- Finish
Powder paint, black
- Cross Reference
Clipper 632-SC3
