Product Description
Description

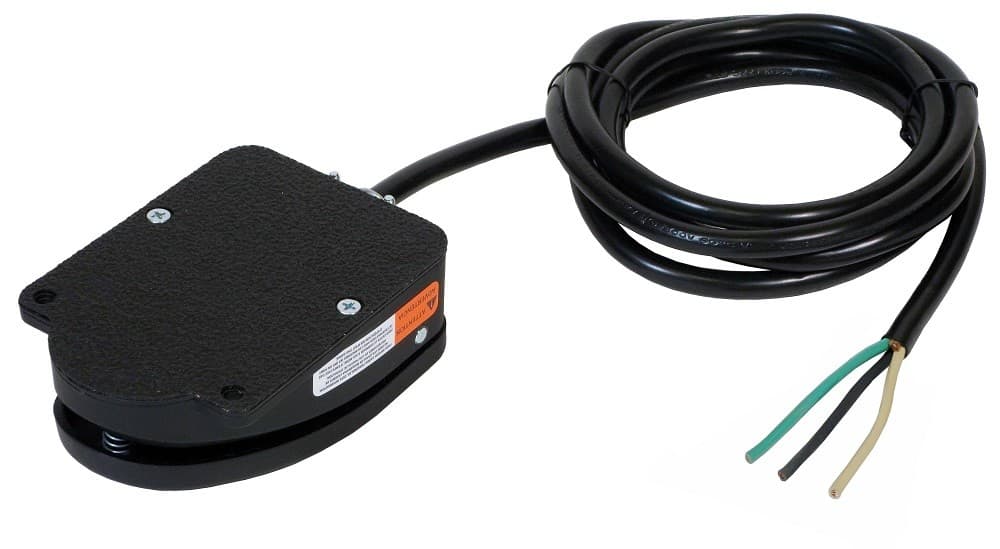

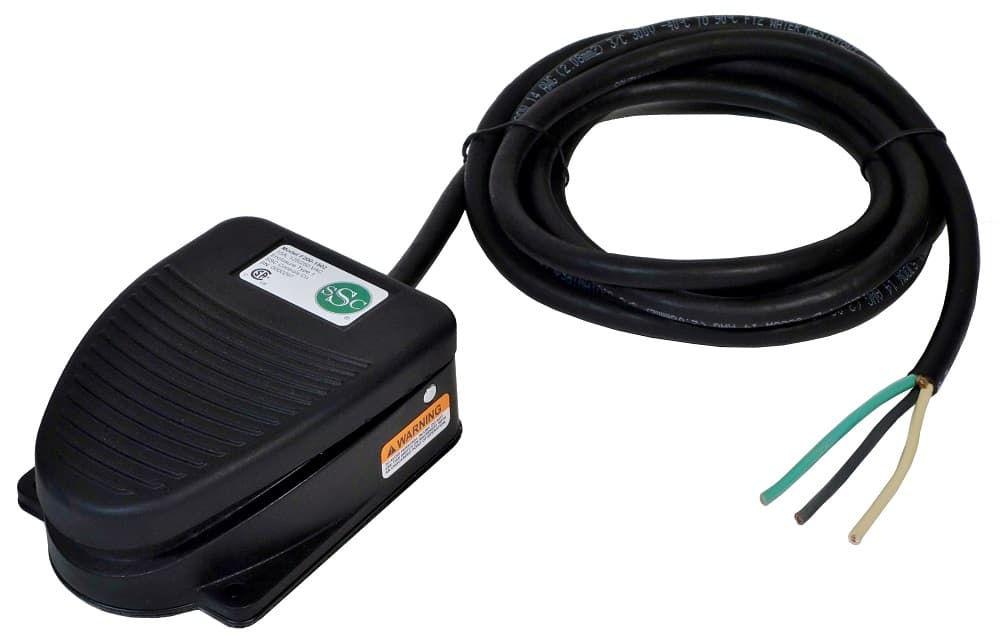

Designed for a wide variety of applications, the F-Series Foot Switch features a tough die-cast zinc housing, attractive shape, easy wire hookup, and numerous switch / cable combinations.
Die-cast housing provides superior appearance and durability.
Durable zinc alloy will not rust or easily break.
Powder-painted black finish with bottom traction pad.
Includes two exterior bolt-down holes.
Enclosure rating: CSA/NEMA Type 1; IEC 60529 IP20.
CSA Certified and UL Listed to US and Canadian standards
Designed and manufactured under an ISO 9001 certified quality system.
Made in USA.
Highlights

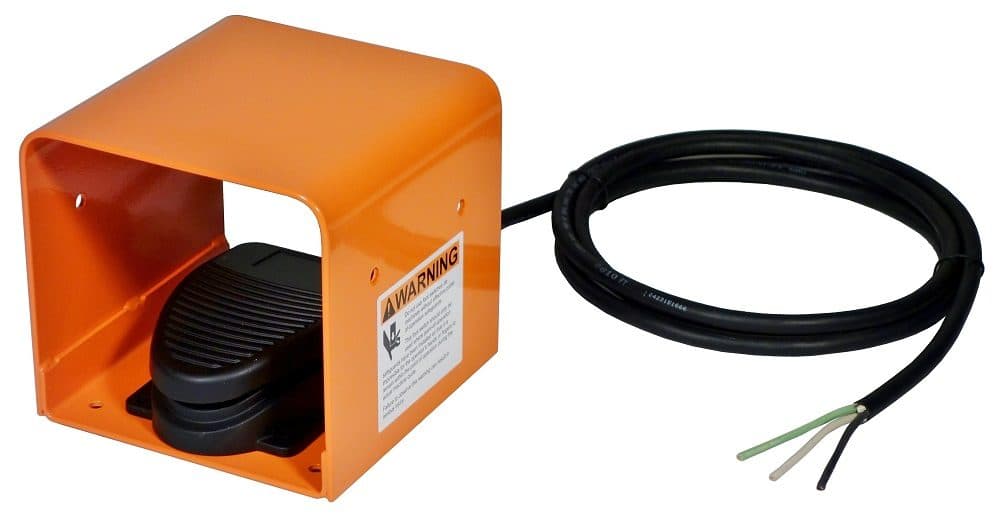

Optional Guard
The F-Series with Guards provide a tough powder-painted steel cover for any F-Series foot switch. The unit includes the foot switch enclosed in a tough 12-gauge steel guard. The guard provides a comfortable housing in which to locate the foot, as well as to protect the switch from debris.
Optional Protective Boot Cover
The vinyl boot cover can be attached onto any single F-Series foot switch with no tools required. The boot cover adds a layer of protection to keep out dirt, dust, light overhead dripping water, and other undesirable elements. Note: It does not make the foot switch waterproof or submergible, and it does not change the NEMA Enclosure Type 1 or IP 20 rating of the F-Series. It is made of Plastisol PVC material.
Dual Base Compatible
The DF-Series Dual Foot Switch allows the combination of two F-Series foot switches on a dual base, with a connection tube to route the wiring from one side to the other, and one cable exit point.
Specifications
- Action
Momentary
- No. Switches
1
- Rating
15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC
- Circuit
SPDT wired NO
- Cable
8 ft cable with leads
- Weight
3 lbs (1.36 kg)
- Dimensions
4.8 x 3.5 x 1.7 in (12.2 x 8.9 x 4.3 cm)
- Enclosure Rating
UL/CSA/NEMA Type 1 and IEC 60529 IP20
For indoor use in dry environments.
- Certification
CSA Certified to US and Canadian standard
- Finish
Powder paint, black
- Cross Reference
Clipper 632-SC36
