Product Description
Description

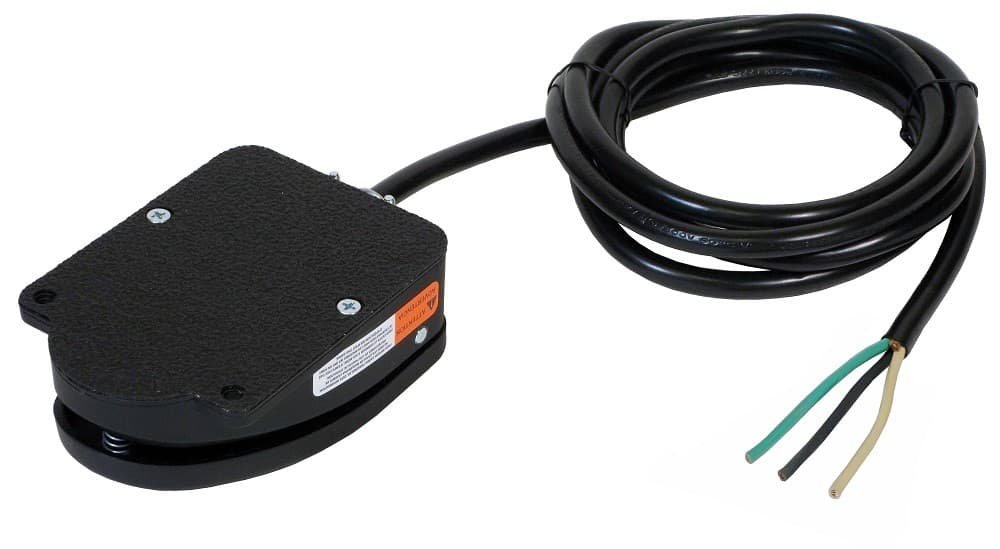

Push-on/push-off foot switch with die-cast housing, precise pedal action, and attractive finish. Simply press the pedal once to turn it on, and press it again to turn it off (you can remove your foot and it will stay on until pressed again). This foot switch comes with a cable with leads, so the user will need to hook the leads up to the circuit. The switch will need to be wired into one side of the circuit (note: the black and white wire colors have no relevance or relationship to household wiring colors).
Die-cast housing provides superior appearance and durability.
Durable zinc alloy will not rust or easily break.
Powder-painted black finish with bottom traction pad.
Includes two exterior bolt-down holes.
Enclosure rating: CSA/NEMA Type 1; IEC 60529 IP20.
CSA Certified and UL Listed to US and Canadian standards
Designed and manufactured under an ISO 9001 certified quality system.
Made in USA.
Highlights

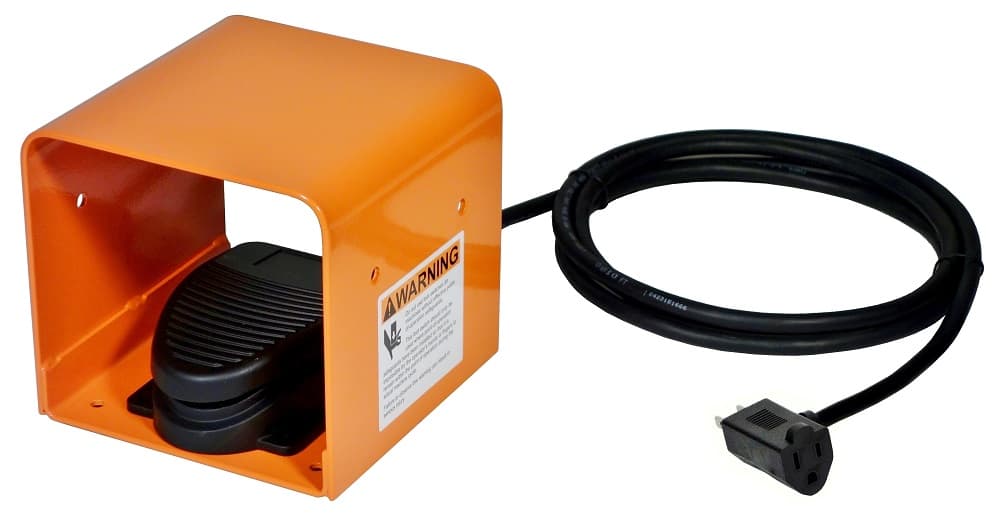

Optional Guard
The F-Series with Guards provide a tough powder-painted steel cover for any F-Series foot switch. The unit includes the foot switch enclosed in a tough 12-gauge steel guard. The guard provides a comfortable housing in which to locate the foot, as well as to protect the switch from debris.
Optional Protective Boot Cover
The vinyl boot cover can be attached onto any single F-Series foot switch with no tools required. The boot cover adds a layer of protection to keep out dirt, dust, light overhead dripping water, and other undesirable elements. Note: It does not make the foot switch waterproof or submergible, and it does not change the NEMA Enclosure Type 1 or IP 20 rating of the F-Series. It is made of Plastisol PVC material.
Dual Base Compatible
The DF-Series Dual Foot Switch allows the combination of two F-Series foot switches on a dual base, with a connection tube to route the wiring from one side to the other, and one cable exit point.
Specifications
- Action
Maintained
- No. Switches
1
- Rating
15 A, 125 VAC; 10 A, 250 VAC; ¾ HP, 125 VAC
- Circuit
SPDT wired NO
- Cable
8 ft cable with leads
- Weight
2.1 lbs (0.96 kg) (without cable)
- Dimensions
4.8 x 3.5 x 1.8 in (12.2 x 8.9 x 4.6 cm)
- Enclosure Rating
UL/CSA/NEMA Type 1 and IEC 60529 IP20
For indoor use in dry environments.
- Certification
CSA Certified to US and Canadian standard
- Finish
Powder paint, black
- Cross Reference
Clipper with leads
