SSC Controls

G700 Series

Foot Switch

Heavy-duty potentiometer foot pedals

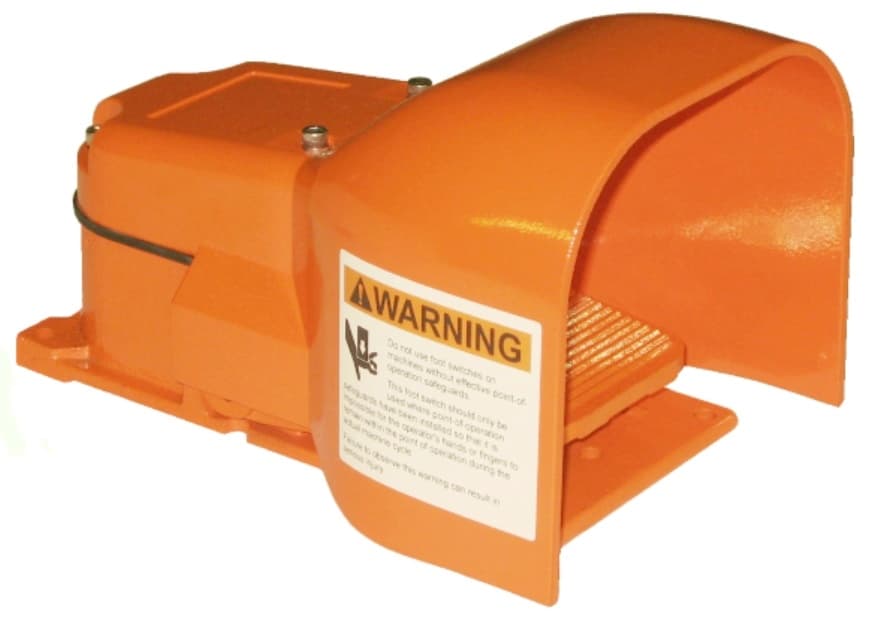

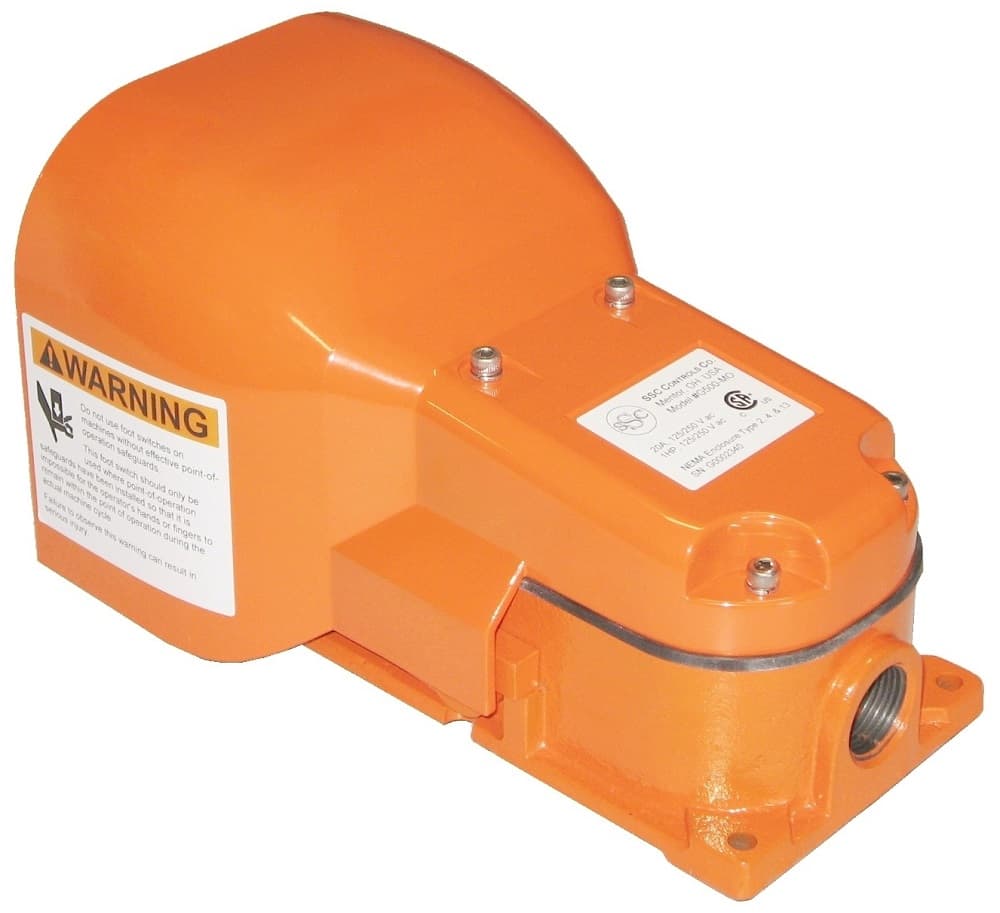

The G700 are potentiometer foot pedals that feature the heavy-duty die-cast construction of the G-Series and an oversized guard. Simply press down on the pedal to move through the range of the potentiometer; release your foot and the pedal will return upright.

The G700s are available with or without a switch. Units with switches are set for the switch to activate at the beginning of the pedal cycle (at the top of the pedal motion), and the switch will stay on as the pedal continues through the range of the potentiometer as the pedal is pressed down.

The rugged die-cast aluminum construction will not rust or break when dropped, and the housing provides a water/dust/oil/splash-resistant enclosure when properly connected (NEMA Type 2, 4, & 13 or IEC IP56)

  • Oversized guard opening (5.5" H x 6" W).

  • High life linear variable resistance output.

  • 3/4"-14 N.P.T. threaded conduit entry.

  • Adjustable switch activation point.

  • Powder-painted Safety Orange finish.

  • Mounting holes with optional 3M® bumper feet.

  • 20 amp @ 125/250 VAC Honeywell® switch ("S" models only).

  • Quality system certified to ISO 9001.

  • Made in USA.



5.0 lbs (2.3 kg)


9.2 x 6.2 x 5.5 in (23.7 x 15.8 x 15.0 cm)

Enclosure Rating

IP-56; NEMA Type 2, 4, & 13


Powder paint, safety orange
